5) Network Log Analysis: Determine Compromised System

Challenge

Difficulty: 2/5

The attacks don’t stop! Can you help identify the IP address of the malware-infected system using these Zeek logs? For hints on achieving this objective, please visit the Laboratory and talk with Sparkle Redberry.

Answer

192.168.134.130

Solution

After Downloading and Extracting the file, we noticed that it contained a folder elfu-zeeklogs. We opened this folder and noticed that it contained 890 log files and a folder ELFU We then opened ELFU:

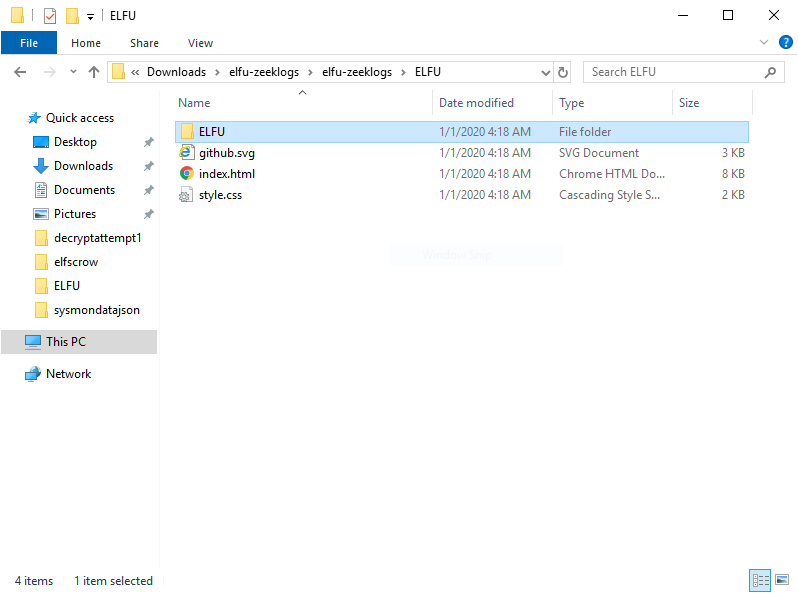

../_images/ELFU.PNG

There is a file named index.html as well as some other files and folders.

The ELFU folder contains the tabs that can be accesed from the index

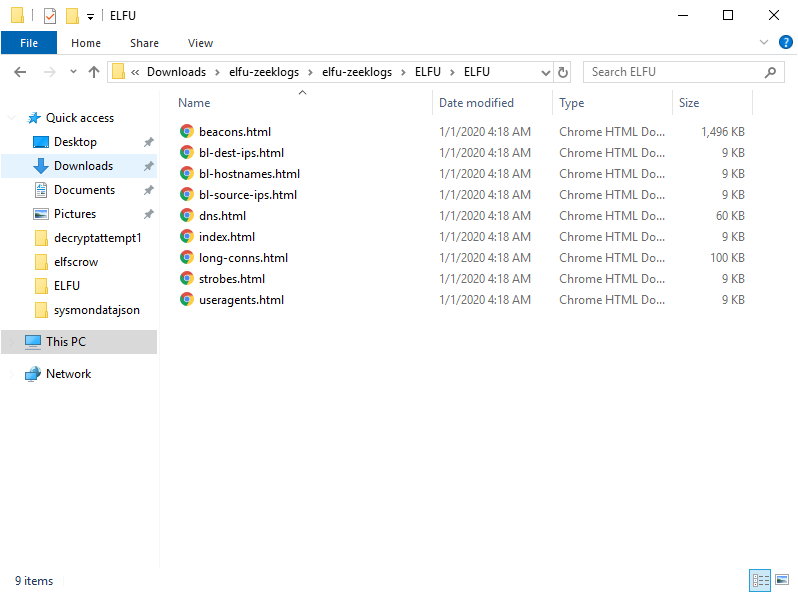

../_images/ELFU2.PNG

Open the index.html file in a browser.

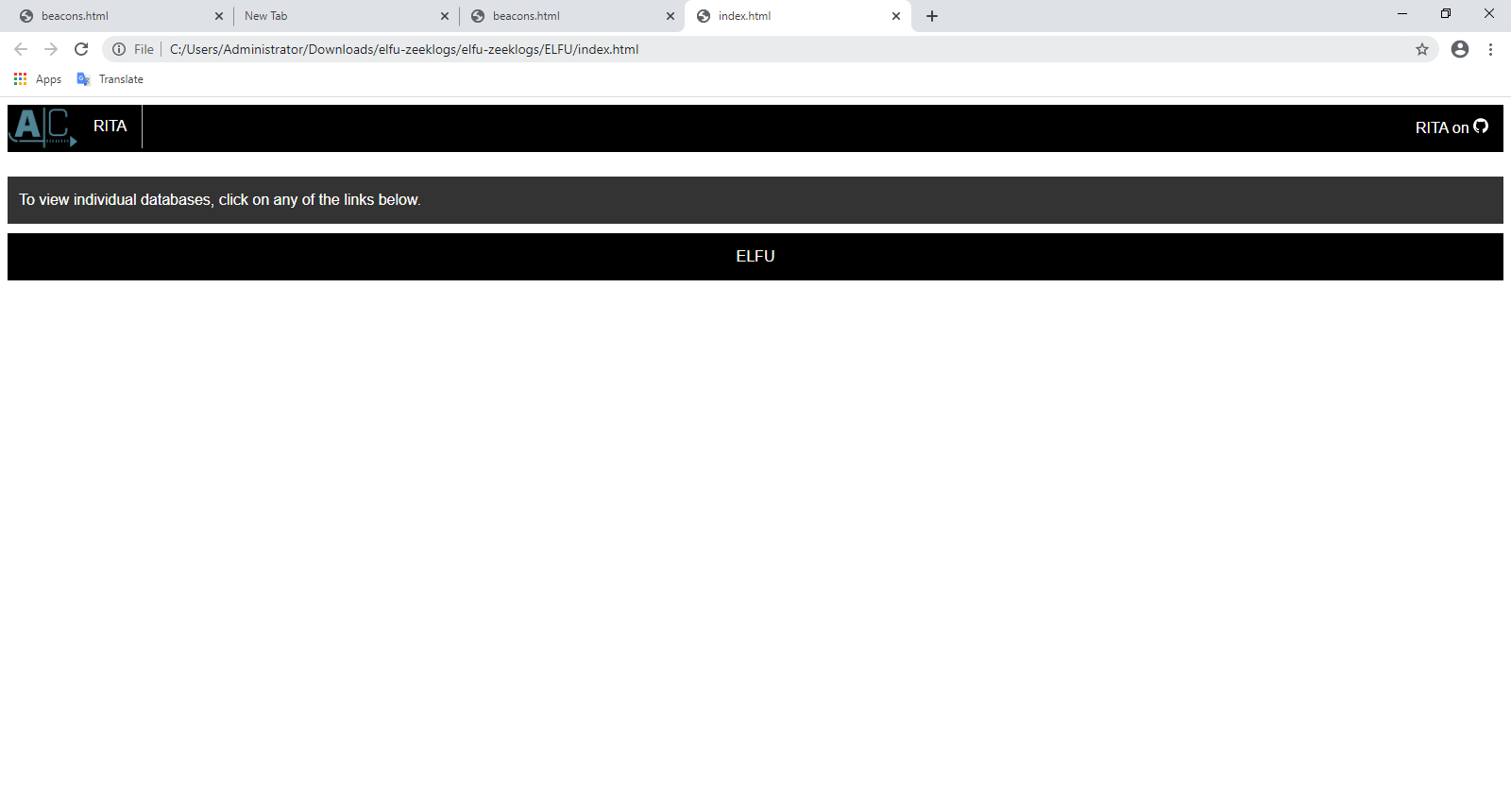

../_images/INDEX.PNG

Click on ELFU

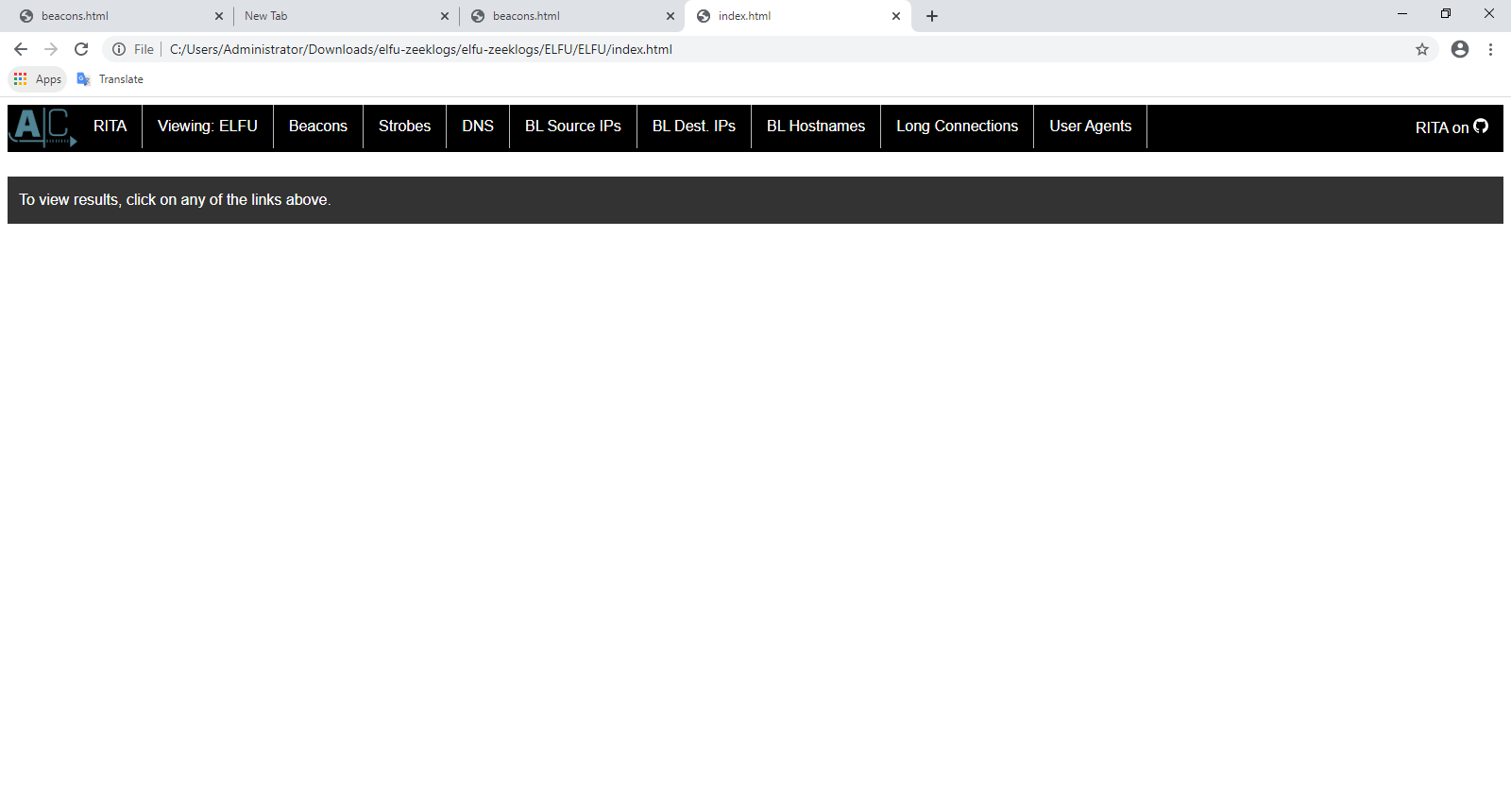

../_images/MENU.PNG

Click on Beacons

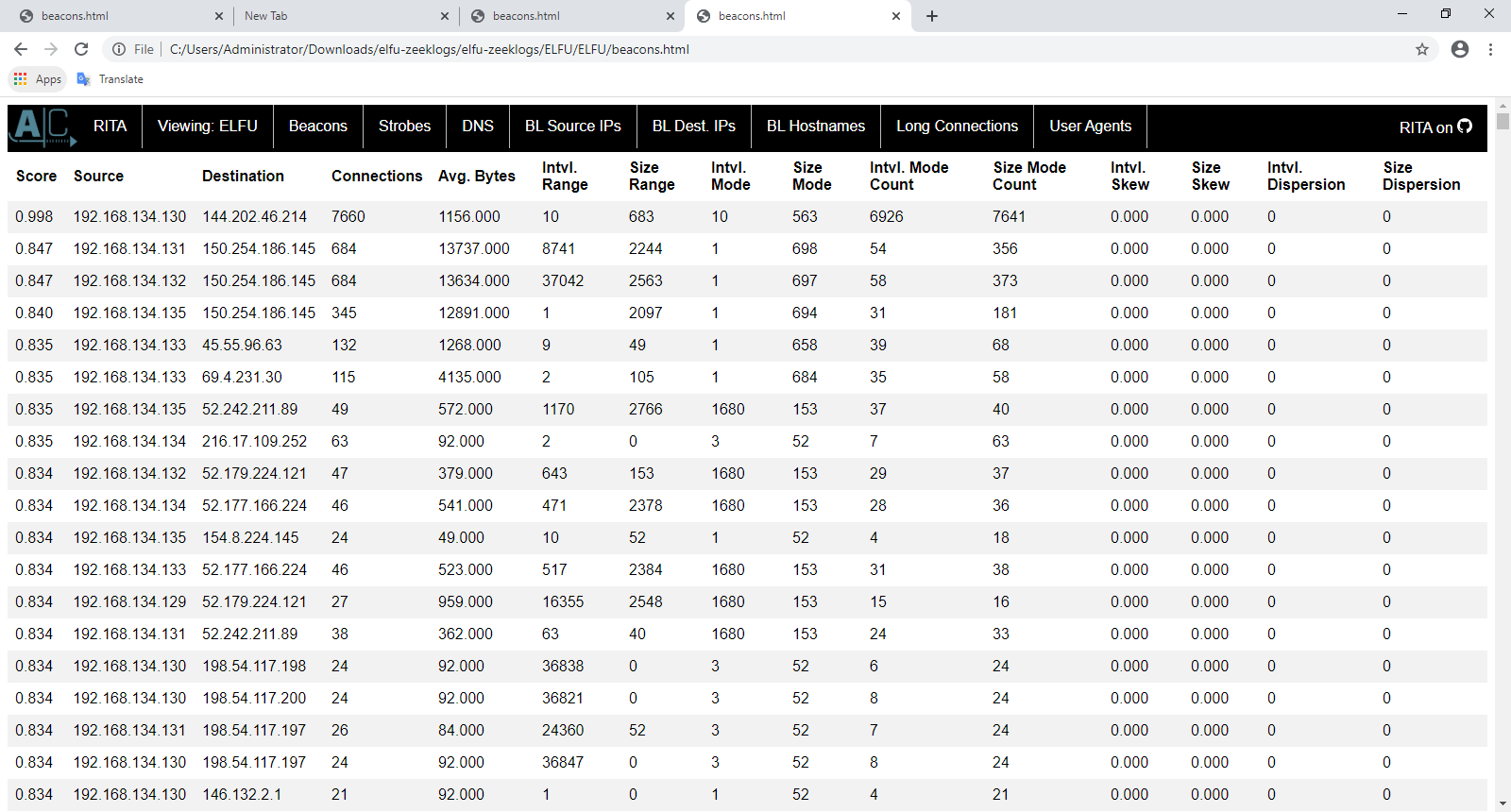

../_images/Beacons.PNG

The first row has the highest score, so it’s the most likely to be a beacon. The Source field of the first row contains the IP of the affected system.

Hint

Sparkle Redberry:

You got it - three cheers for cheer! For objective 5, have you taken a look at our Zeek logs? Something’s gone wrong. But I hear someone named Rita can help us. Can you and she figure out what happened?

Hint

RITA

From: Sparkle Redberry

RITA’s homepage
